- Multi-panel window designs with a gentle curved projection
- Bow window replacement and new installation
- Careful structural support, flashing, insulation, and sealing
- Glass and frame options for Michigan homes
Add Light, Views, and Architectural Character With a Bow Window
A bow window creates a broad view by combining several window units into a gentle curve that extends beyond the exterior wall.
Worthy Construction provides professional bow window installation and replacement for homeowners in Kalamazoo and throughout Southwest Michigan.
Bow windows can bring more natural light into living rooms, dining areas, front rooms, and other spaces while creating a distinctive architectural feature inside and outside the home.
Because the assembly projects beyond the wall and contains several connected window sections, installation requires more than simply setting a standard window into an opening.
Support, frame alignment, flashing, insulation, perimeter sealing, exterior trim, drainage, and the joints between window sections all matter.
Our goal is to install the complete bow window assembly so it is properly supported, weather-protected, and integrated with the surrounding wall.

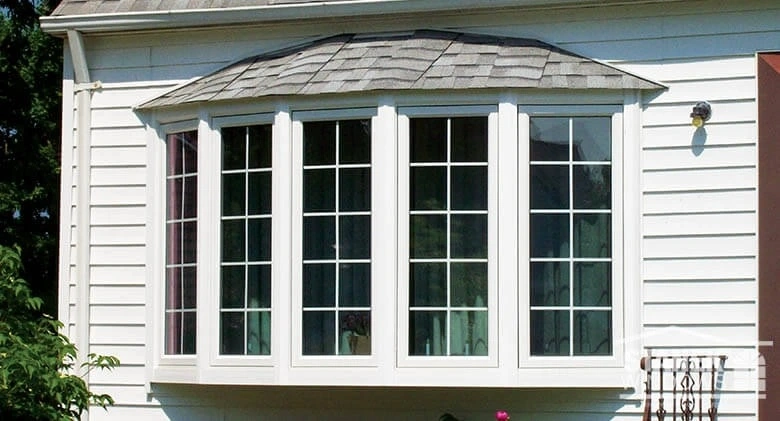

What Is a Bow Window?
A bow window is made from multiple window units joined together at slight angles to create a rounded or curved appearance.
Many bow configurations use four, five, or six window sections, although the exact design depends on the manufacturer, opening, and project.
Unlike a flat window installed within the wall plane, a bow window extends outward.
This creates:
- A wider field of view
- Additional glass area
- More natural light
- A deeper interior sill or projection
- A distinctive exterior appearance
Some sections may be fixed while others can be operable depending on the selected configuration.
Because there are multiple joined units, careful installation at each connection is especially important.
What to Expect From Our Bow Window Service
1. Evaluate the Existing Opening
For replacement projects, we begin by examining the existing bow window and surrounding area.
We look for conditions such as:
- Drafts
- Fogged glass
- Difficult window operation
- Water staining
- Soft or deteriorated trim
- Frame movement
- Damaged exterior cladding
- Joint separation
- Failed sealant
- Moisture around the interior seat
We also look at how the existing bow integrates with the wall and exterior materials.
2. Measure the Opening
Bow windows need accurate measurements because several connected window units need to fit together within one projected assembly.
We consider:
- Rough opening size
- Projection depth
- Number of window sections
- Interior dimensions
- Exterior dimensions
- Existing support
- Trim requirements
- Nearby exterior features
Accurate planning helps the new assembly fit the home properly.
3. Choose the Bow Window Configuration
We help homeowners consider:
- Number of window sections
- Fixed versus operable units
- Frame material
- Glass package
- Grid patterns
- Exterior finish
- Interior trim
- Projection depth
The appropriate configuration depends on the room, opening, appearance, ventilation needs, and project goals.
4. Remove the Existing Window
For replacement work, the old bow window is removed carefully so the accessible opening can be evaluated.
This may reveal:
- Damaged framing
- Wood deterioration
- Moisture staining
- Failed flashing
- Insulation gaps
- Exterior trim problems
Conditions that could affect the new installation should be addressed before the opening is covered again.
5. Install and Support the New Bow Window
The new window assembly is positioned, supported, fastened, insulated, flashed, and sealed according to the requirements of the selected system.
We pay careful attention to level, alignment, perimeter gaps, joined window sections, and exterior transitions.
6. Finish the Interior and Exterior
Interior trim, exterior trim, cladding transitions, and other finish details are completed as required.
We then check the operation of any movable window sections and review the finished installation.
Why Bow Window Support Matters
A bow window projects beyond the exterior wall and can be heavier than a standard window.
That means the assembly must be properly supported.
Depending on the window design and structure, support may involve specific manufacturer-approved systems or structural details.
The important point is that the weight of the assembly should not depend only on sealant or trim.
Proper support helps maintain:
- Window alignment
- Smooth operation
- Joint integrity
- Frame stability
- Consistent perimeter sealing
When a bow assembly begins to sag or shift, window sections may become difficult to operate and joints can begin to separate.
Common Bow Window Problems
Drafts
Air may enter around:
- Window joints
- Perimeter gaps
- Weatherstripping
- Operable sash
- Poorly insulated framing
- Deteriorated seals
Drafts should be evaluated to determine whether the issue is localized or affects the entire assembly.
Fog Between Glass Panes
Persistent haze or moisture between panes usually indicates failure of the insulated glass seal.
One failed glass unit may sometimes be addressed individually depending on the window.
Multiple failing sections on an older bow assembly may make broader replacement worth considering.
Water Stains
Staining around a bow window can appear on:
- Interior trim
- The window seat
- Drywall
- Exterior trim
- Wall finishes
The source may involve flashing, exterior transitions, failed sealant, joint problems, or deterioration around the opening.
Difficult Window Operation
Operable portions of the bow window may become difficult to open, close, or lock because of:
- Hardware wear
- Frame distortion
- Window movement
- Swelling
- Misalignment
- Support problems
Joint Separation
A bow window contains several connected sections.
When those connections begin to separate, they may allow unwanted air or moisture into the assembly.
Deteriorated Trim or Framing
Soft wood, peeling finishes, or repeated moisture staining can indicate that water has been reaching structural or finish materials around the opening.
Signs Your Bow Window May Need Replacement
Replacement may deserve consideration when you notice:
- Repeated water intrusion
- Multiple failed glass seals
- Significant frame deterioration
- Rot around the window seat or opening
- Several window sections that no longer operate properly
- Widespread joint separation
- Persistent drafts after smaller repairs
- Structural movement or sagging
- Extensive exterior trim deterioration
- An older assembly with multiple recurring problems
One isolated hardware issue or failed glass unit does not automatically require complete bow window replacement.
The condition of the entire assembly should guide the recommendation.
Bow Window Repair or Replacement
Some bow window problems can be repaired.
Localized work may make sense when:
- One piece of hardware fails
- One operable sash needs adjustment
- A limited sealant joint has deteriorated
- Exterior trim damage is isolated
- One insulated glass unit has failed
- The surrounding structure remains sound
Replacement may become more practical when problems affect several portions of the assembly.
That can include widespread moisture damage, significant structural movement, repeated glass failures, or multiple failing joints.
The goal is to correct the underlying problem rather than repeatedly patch the visible symptom.
Bow Windows vs. Bay Windows
Bow and bay windows both project outward from the home, but they create different appearances.
Bow Windows
Bow windows typically use several window units positioned at smaller angles.
This creates:
- A softer curved appearance
- Multiple glass sections
- A broad panoramic view
- A more rounded exterior projection
Bay Windows
Bay windows typically use three primary sections with more pronounced angles.
This creates a more angular projection.
A bay window may provide a deeper center projection, while a bow window often creates a wider curved appearance.
The right option depends on the opening, architecture, desired interior space, and homeowner preference.
Bow Window Glass Options
Glass can have a significant effect on comfort because bow windows contain a relatively large glazed area.
Depending on the manufacturer and product, options may include:
- Double-pane insulated glass
- Low-E coatings
- Gas-filled insulated glass units
- Different spacer systems
- Tempered glass where required
- Decorative glass
- Grid patterns
The appropriate package depends on climate, window orientation, project requirements, and product availability.
Our energy-efficient windows page explains common energy-performance features in more detail.
Fixed and Operable Bow Window Sections
Not every panel in a bow window needs to operate.
Many configurations combine fixed and operable window sections.
Fixed sections can provide:
- Large uninterrupted glass areas
- Clear views
- Simplified operation
Operable sections can provide:
- Natural ventilation
- Seasonal airflow
- Easier control of room ventilation
The exact configuration depends on the bow design and manufacturer.
Homeowners should consider how much ventilation they actually need before deciding how many sections should open.
Bow Window Flashing
Flashing is one of the most important parts of bow window installation.
Water can reach the assembly from:
- Rain
- Wind-driven rain
- Roof runoff
- Siding
- Exterior trim
- Wall surfaces
The window opening should be integrated with surrounding weather-resistant materials so water is directed outward.
Important areas include:
- The head of the window
- Side transitions
- Lower portions of the opening
- Joints with siding or exterior cladding
- Roof or cap details where applicable
Sealant can support these areas, but it should not be the only defense against water.
Bow Window Insulation and Air Sealing
The perimeter between the window assembly and framing needs appropriate insulation.
Uninsulated gaps can create cold areas and drafts even when the window itself has high-performance glass.
The installation should also limit uncontrolled air movement around the opening.
Important areas include:
- Perimeter gaps
- Joined window sections
- Interior trim transitions
- Exterior connections
- The lower window seat area
Insulation and air sealing should work together without preventing intended drainage.
Bow Windows and Condensation
Condensation can appear in several different places.
Between Glass Panes
Moisture trapped between panes generally indicates an insulated glass seal failure.
On the Interior Glass
Condensation on the room-facing glass can be influenced by:
- Indoor humidity
- Outdoor temperature
- Glass temperature
- Air circulation
- Window performance
Because bow windows have a large glass area, winter condensation can become more noticeable when indoor humidity is high.
Around the Frame
Moisture around trim or the window seat should not automatically be assumed to be normal condensation.
Recurring staining after rain may indicate exterior water intrusion.

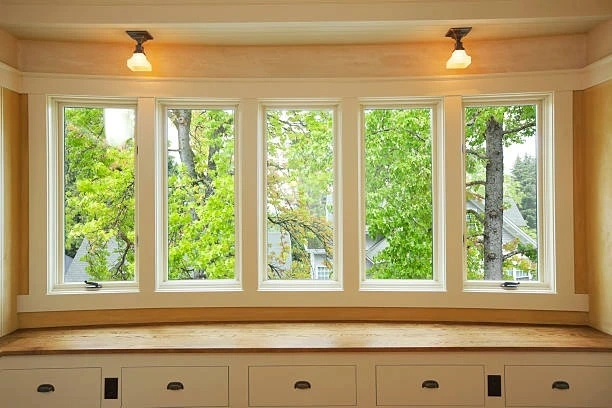

Bow Window Seat and Interior Projection
One feature homeowners often like about bow windows is the larger interior sill or seat created by the projection.
This area can provide:
- Display space
- Plant space
- Decorative use
- A deeper visual connection to the outdoors
However, the seat also needs to remain protected from moisture and excessive condensation.
Softness, swelling, staining, or peeling finishes in this area deserve attention because they may indicate water entering somewhere in the assembly.
Bow Windows and Siding
Bow window installation needs to integrate with the exterior wall covering.
Siding around the window should help direct water toward the outside while maintaining proper clearances and trim transitions.
If broader exterior siding problems exist around the opening, our siding services may be relevant.
A complete siding project is not necessary simply because a bow window is replaced.
The important point is that the window and surrounding exterior materials need to work together.
Bow Windows for Michigan Weather
Southwest Michigan homes experience:
- Cold winter temperatures
- Snow and ice
- Strong winds
- Wind-driven rain
- Summer heat
- Humidity
- Freeze-and-thaw cycles
These conditions place repeated stress on window joints, sealants, flashing, and exterior trim.
Bow windows also project farther into outdoor conditions than standard wall-mounted windows.
That makes correct support, water management, perimeter sealing, and glass selection particularly important.
Maintaining a Bow Window
Bow windows benefit from periodic inspection.
Homeowners can watch for:
- Cracked exterior sealant
- Water staining
- Fogged glass
- Loose trim
- Difficult sash operation
- Damaged hardware
- Blocked drainage openings
- Interior condensation
- Joint separation
Keep operable sections clean and use manufacturer-appropriate care for hardware and tracks.
Small problems are generally easier to correct before they affect framing or several sections of the assembly.
Why Professional Bow Window Installation Matters
A bow window combines several windows into one projected assembly.
That makes installation more complex than a standard flat window.
Professional installation considers:
- Structural support
- Opening measurements
- Window alignment
- Fastening
- Flashing
- Water drainage
- Perimeter insulation
- Air sealing
- Joined window sections
- Exterior trim
- Interior finishing
A beautiful window can still develop problems if the surrounding opening is not prepared and protected correctly.
Why Choose Worthy Construction for Bow Windows?
Complete Opening Evaluation
We evaluate the existing bow window, surrounding frame, trim, flashing, and visible moisture conditions before installation.
Attention to Support
Bow windows project beyond the wall and require proper structural support and alignment.
Water Management
We pay careful attention to flashing and exterior transitions because multiple joints create additional areas that must remain protected.
Careful Installation
Fastening, insulation, air sealing, support, operation, and finish details all contribute to the final result.
Local Exterior Experience
Southwest Michigan weather creates demanding conditions for projected windows.
Our recommendations take wind, rain, snow, ice, humidity, and changing temperatures into account.
Bow Window FAQs
What is a bow window?
A bow window is a projected window assembly made from multiple window sections joined at slight angles to create a gentle curved appearance. Many designs use four, five, or six sections, although configurations vary by manufacturer and opening.
What is the difference between a bow window and a bay window?
A bow window usually uses several window sections to create a softer curved projection. A bay window typically uses three main sections arranged at more pronounced angles. Both extend beyond the exterior wall but create different appearances and interior projections.
Can parts of a bow window open?
Yes. Depending on the window system, a bow can combine fixed and operable window sections. The number and location of operable sections depend on the selected product and ventilation needs.
Can a bow window be repaired without replacing the entire unit?
Sometimes. Individual hardware problems, isolated glass failures, trim issues, or limited sealant problems may be repairable when the rest of the assembly remains sound. Replacement may become more appropriate when several sections or structural components are failing.
Why is my bow window leaking?
Potential causes include failed flashing, deteriorated exterior sealant, joint separation, damaged trim, poor drainage, or problems where the window integrates with siding and surrounding wall materials. The actual entry point should be identified before repairs are made.
Why is there fog between the panes of my bow window?
Fog or moisture trapped between panes usually indicates failure of the insulated glass seal. Depending on the window design and condition, the affected glass unit may sometimes be replaceable without replacing the entire bow assembly.
Are bow windows suitable for Michigan weather?
Yes, when the window system is properly selected and installed. Structural support, insulated glass, flashing, perimeter sealing, drainage, and exterior finishing are especially important because bow windows project beyond the exterior wall and contain multiple joined window sections.
Schedule Your Bow Window Estimate
A bow window can add natural light, a wider outdoor view, and distinctive architectural character to a home, but its performance depends on more than the glass.
Support, joined sections, flashing, insulation, air sealing, drainage, and exterior finishing all need to work together.
Whether your existing bow window has drafts, fogged glass, moisture damage, difficult operation, or you want to add a new bow window to your home, Worthy Construction can evaluate the opening and help determine the appropriate solution.
If you are looking for a dependable window replacement contractor in Kalamazoo, MI, contact Worthy Construction today for professional bow window installation and explore our complete window replacement services throughout Southwest Michigan.
